【展商資訊】3D Controls:Ceramic Print Tech

發布時間:2024-06-03

圖片


3D Controls Co., Ltd.

Hall3.1|C315 - 3


前沿產品/Cutting-edge products

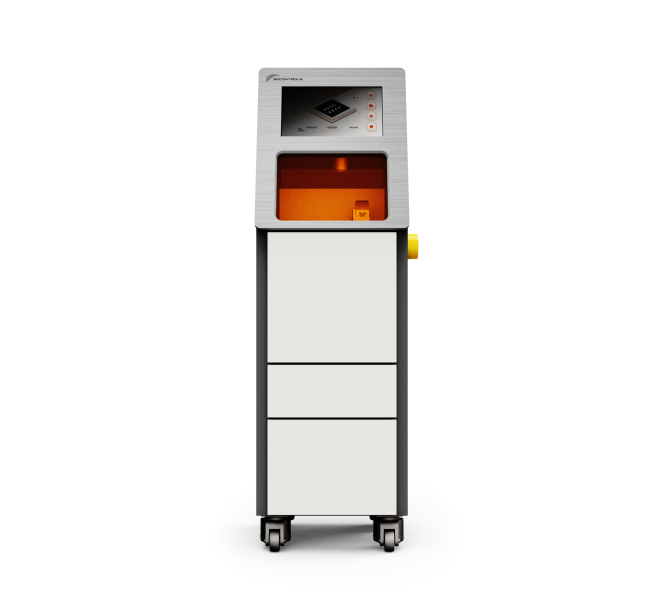

01 3D Printer TD6+




Build Size 120 x 68 x 45 mm
Layer Thickness 25 ~ 100μm

Pixel Pitch 72μm

Product Size 515 x 510 x 1655 mm

Electricity AC 200 ~ 240V, 50/60Hz

Innovative technology for manufacturing ceramic parts

The DLP (Digital Light Processing) engine with top-down surface survey technique enables fast and precise part manufacturing that surpasses traditional processing methods such as milling and CIM.

Key points of DLP engine technology

- Precision : Capable of producing precise prints with top-down surface survey technology using Full HD high resolution.

- Repeatability : Provides consistent production reliability in any environment.


3D打印構建尺寸 120 x 68 x 45 mm
層厚25~100μm
像素間距72μm
產品規格 515 x 510 x 1655 mm
電力 交流200~240V,50/60Hz

提供突破現有技術限制的創新陶瓷3D打印解決方案。
利用高分辨率 DLP引擎制作陶瓷零件的創新技術

采用下沉式面狀照射技術的 DLP(Digital Light Processing) 引擎超越傳統的銑削、CIM等電動加工方式,實現快速、精密的零件制造。
DLP引擎技術的關鍵點
- 精度:采用全高清高分辨率的下沉式面狀照射技術,可生產精密的打印件。
- 重復再現性:在任何環境中提供統一的制作可靠性。


02 Furnace R0


圖片


Product Size 324 x 391 x 527 mm

Inner Size 110 x 110 x 100 mm

Weight 35 kg

Electricity AC 220V, 50/60Hz

Temperature Max 1600°C

By processing debinding and sintering in a single process, it ensures convenience and consistency in the sintering process.


產品規格324 x 391 x 527 mm
內部尺寸 110 x 110 x 100 mm
凈重35 kg
電源 AC 220V,50/60Hz
溫度范圍 最大1600°C
通過單一工藝處理脫脂和燒結,確保燒結過程的便利性和一致性。


03 Cleaner C1


圖片


Product Size 660 x 545 x 1210 mm

Inner Size 610 x 380 x 410 mm

Nozel Pressure 0.2 ~ 0.7 MPa

Recommended

Air Compressor (4horsepower, 7Bar, 20l/min), dedicated cleaning solution.

By applying a direct injection nozzle control system, damage to the green body is minimized during cleaning process.


產品規格 660 x 545 x 1210 mm
內部尺寸 610 x 380 x 410 mm
諾澤爾壓力 0.2 ~ 0.7 MPa
推薦的空氣壓縮機(4馬力,TBar, 20&/min),使用專用清潔液

采用直噴噴嘴控制系統,最大限度地減少清洗過程中對生坯的損壞。


04 Polishing Machine P1


圖片


Product Size 1514 x 925 x 1654 mm

Inner Capacity 3.5 L Barrel x 4

Electricity AC 220V, 50/60Hz

Spin Speed MAX 170 RPM Commercial 140 RPM

Through a polishing process specialized
for ceramics, it provides an excellent surface finish optimized for the application.


產品規格 1514 x 925 x 1654 mm
內在能力 3.5 L Barrel x 4
電力 AC 220V,50/60Hz
自旋速度 最大 170 RPM

常用 140 RPM
通過陶瓷專用的研磨工藝,提供卓越的表面光潔度,以優化用途。


公司簡介/Company Profile

3D Controls Co., Ltd. is a ceramic printing and materials development company established in 2014.

We have independently developed a 3D printer based on ceramic resin materials and high-precision DLP engines optimized for additive manufacturing, hold 23 technology patents, and have been certified as a core strategic tech company and innovative product by the Korean government.

Furthermore, we have a product line-up including cleaning machines, dedicated sintering furnaces, and polishing machines for the full cycle of processing completely sintered ceramic bodies.
